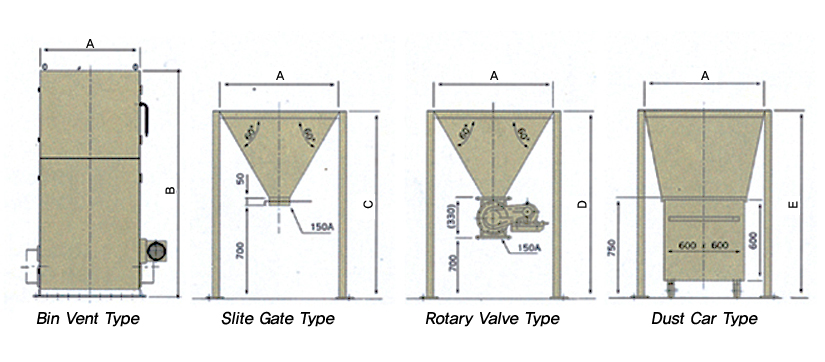

| MODEL SPEC |
BX | FX | ||||||||||||
| 1000 | 2000 | 3000 | 5000 | 7500 | 10000 | 2000 | 3000 | 5000 | 7500 | 10000 | 15000 | 20000 | 30000 | |
| 폭(A) | 520 | 620 | 750 | 750 | 1500 | 1500 | 650 | 770 | 900 | 1300 | 1700 | 1700 | 2550 | 2550 |
| BIN VENT(B) | 1200 | 1390 | 1690 | 1690 | 1690 | 1690 | 1610 | 1650 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| SLIDE GATE© | 1070 | 1157 | 1270 | 1920 | 1920 | 1920 | 1183 | 1287 | 1400 | 1745 | 2092 | 2092 | 2828 | 2828 |
| ROTARY VALVE(D) | 1360 | 1447 | 1560 | 1560 | 2210 | 2210 | 1473 | 1577 | 1690 | 2035 | 2383 | 2383 | 3118 | 3118 |
| DUST CAR(E) | 1070 | 1157 | 1270 | 1270 | 1920 | 1920 | 1183 | 1287 | 1400 | 1745 | 2092 | 2092 | 2828 | 2828 |
